HVZZT-8110S 10A Handheld DC Resistance/ Winding Resistance Meter

Ⅰ Introduction

The measurement of a transformer's DC resistance is a fundamental test performed during its manufacturing process (on both semi-finished and finished products) and is essential for field operations including installation, overhaul, tap changer maintenance, handover, and preventive testing; this diagnostic procedure checks for critical issues such as winding joint quality, interturn shorts, tap changer contact integrity and position accuracy, as well as broken wires or strands. To perform this test efficiently, the specialized instrument incorporates advanced power supply technology, making it compact, lightweight, and capable of delivering a large output current with high repeatability, strong anti-interference, and full protection; under the control of a high-speed microcontroller, the automated system ensures precise, simple, and rapid measurements, complete with automatic discharge and alarm functions for operator safety.

Ⅱ Features

1)The whole instrument is controlled by high-speed single chip microcomputer, with high degree of automation and simple operation.

2)The new power supply technology is adopted, with many current gears and wide measurement range. The test current can be automatically selected according to the load.

3)Suitable for measuring the DC resistance of transformers below 35KV or 35KV.

4)480*270 true color LCD touch screen, clear display under strong light, dual-purpose touch screen / key.

5)RS232(reserved) and U disk interface, can communicate with computer and U disk storage.

6)The protection function is perfect, which can reliably protect the impact of back electromotive force on the instrument, and the performance is more reliable.

7)With discharge audible alarm and screen tip, the discharge indication is clear to reduce misoperation.

8)The response speed is fast, the measurement data is stable, and the data is refreshed automatically during the test process.

9)Intelligent power management technology can effectively reduce the internal heating of the instrument and save energy.

10)Non power down clock and non power down memory can permanently save data.

11)Handheld design, small size, light weight, easy to carry.

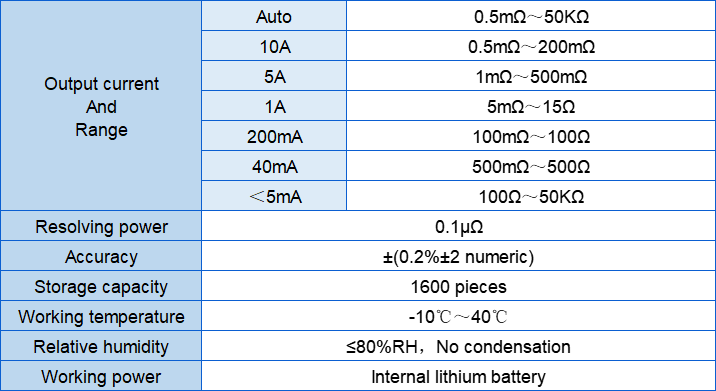

Ⅲ Parameters
