HDYTW Series No Partial Discharge Test System

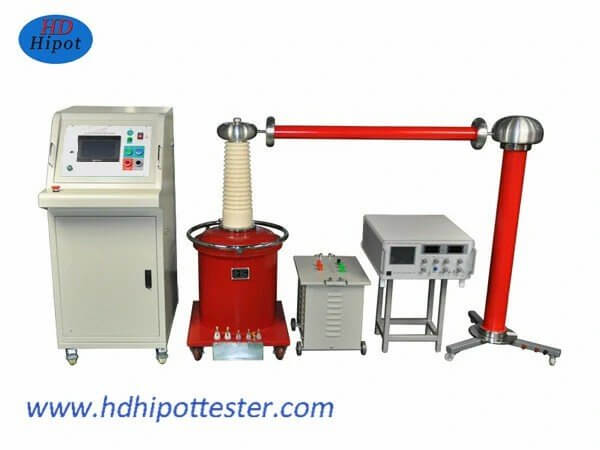

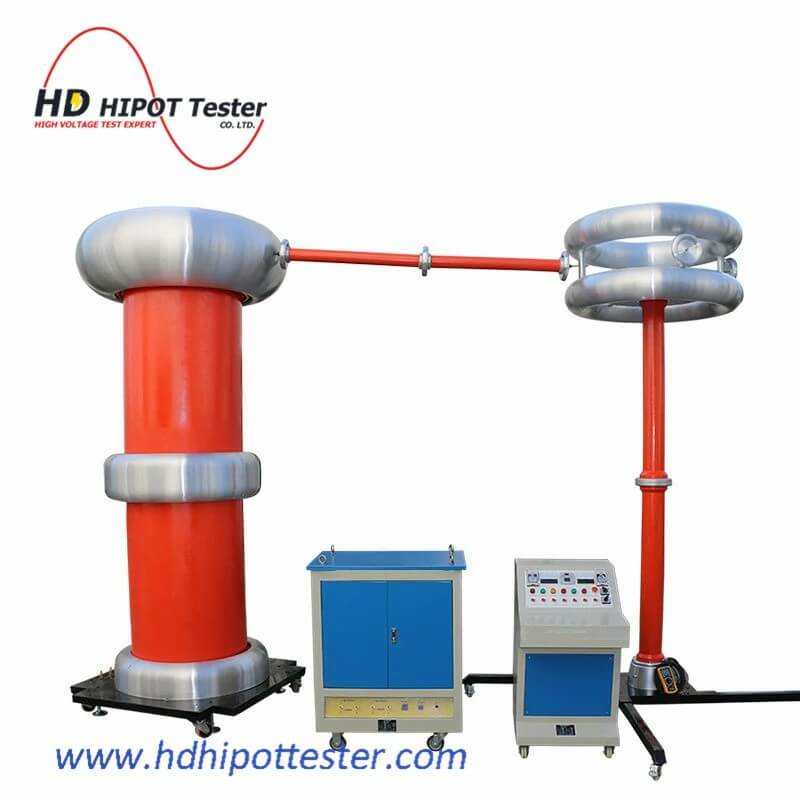

HDYTW Series Partial Discharge Test System



HDYTW is mainly used for testing frequency voltage insulation level of various insulation materials, insulation structure and electrical products, also as partial discharge frequency testing power supply for testing object such as transformer, mutual inductor and lightning arresters. It widely used in electrical manufacturing, power operation departments, research institutes and universities.

It includes below components,

  1. Hipot Test Control Unit HDYD
  2. PD-free Gas type transformer HDYDQW
  3. Coupling capacitor
  4. Protective resistor
  5. Isulation filter LBQ
  6. Partial discharge detector HDJF-2008(for option)


  • Advanced PD-free epoxy insulating tube, small partial discharge capacity.
  • Low impedance voltage, better than national standard.
  • Automatic control technology, good anti-interference performance.
  • Rapid electronic protection, high reliability.


  • Rated Capacity(KVA) : 5~5500
  • High Voltage(KV): 50~250
  • Low Voltage(KV): 0.22/0.38~0.38/0.6~0.6/3~3/6/10
  • Top cover (OD xHeight) (mm): accordance with specific conditions



1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
