Description

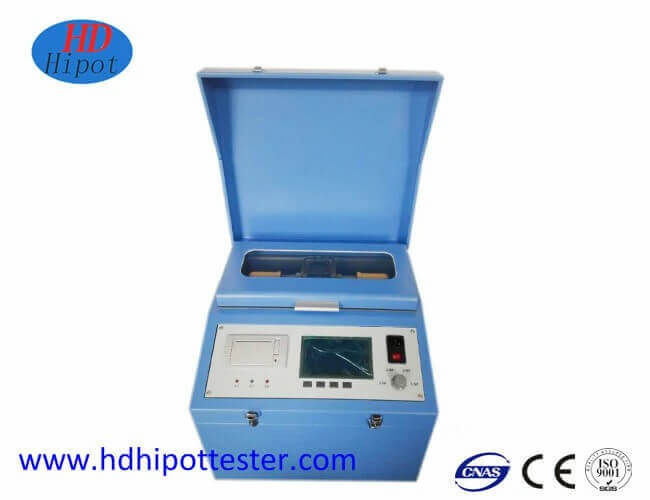

HDIIJ-100KV Transformer Oil Tester



Introduction

HDIIJ-100KV Transformer Oil Tester is made by our company all the scientific and technical personnel, according to national standard GB507-86 and line standard, the relevant provisions of DL/T596-1996/DL-474-4-92, give full play to our advantages with a lot of field test and long-term unremitting efforts, carefully researching and development of high accuracy, full digitalization to the IIJ-100KV Automatic Insulating Oil Dielectric Strength Tester. This tester is easy to operate, beautiful shape. Because of adopting the automatic digital computer control, the tester is high precision measurement, antijamming capability powerfully, safe and reliable.

Features

1.The instrument adopts the large capacity single-chip microcomputer control,works stably and reliably.

2. Instrument can eliminate the phenomenon of crash with wide range of watchdog circuit

3. A variety of operation to choose, Instrument program with IEC156, ASTM D877 and ASTM D1816 three methods of national standard and custom operations for different users’ multiple choice

4. Instrument test cell is made of a special glass casting form once to eliminate the phenomenon of oil leaking and other interference. (There is Three cells type for your choice)

5. instrument can take articularly high voltage terminal sampling design for test values to analogue-digital converter, to avoid the error caused in the analog circuit, to make more accurate measurement results.

6. Instrument internal functions of overflowing, over voltage, short circuit be protected,and are good for antijamming capability and electromagnetic compatibility

7. Instruments are portable structure , easy to move, used inside and outside rooms.

Parameters

1. step-up transformer capacity 1.5 kVA

2. rate of voltage rise

0.5kV/s，1kV/s,2.0kV/s，3.0kV/s,5.0kV/sfive gears

3. output voltage 0～100 kV

4. aberration rate of power supply ＜1%

5. display mode Big LCD display Chinese characters

6. electrode gap standard 2.5 mm

7. boundary dimension 409 mm×393 mm×388 mm

8. Instrument weight 29 kg；

9. environment temperature 0～40℃

10. relative humidity ≤85%

11. working power supply AC 220V ± 10%

12. supply frequency 50 ± 5 Hz

13. power consumption ＜200 W



FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
