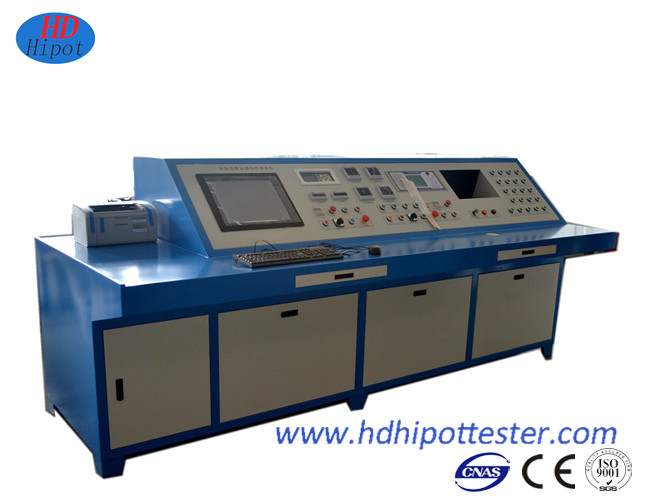

HDBT-Z Transformer Test Bench



HDBT-Z Transformer Test Bench



Transformer test bench is mainly for power transformers, distribution transformers no-load, load characteristics test, induced voltage and frequency voltage withstand test. The device measurement part by the high-end single-chip control, digital display, no load, short circuit test data simultaneously sampled by the microcontroller to avoid the errors of traditional test methods in voltage, current meter , power meter readings were caused by manual calculation.


  1. Using a large backlit LCD screen, operation, display classification clear and intuitive, easy to operate.
  2. Can finish transformer no-load loss, load loss, DC resistance, TTR, AC hipot, induced voltage test.
  3. Voltage, current digital meter or direct reading pointer meter, print loss, ratio, DC resistance test results.
  4. Voltage withstand test with sound& light alarm, timing.


Item Measurement range Relative error
Voltage 0.1~600V ±(0.2% reading +0.1% measurement range)
Current 0.1~200A ±(0.2% reading +0.1% measurement range)
Power U*I ±(0.2% reading +0.1% measurement range)
Power factor 0.1~0.9999 ±3d
Power supply AC220V±10%; 50HZ±2%
Service condition Temperature:0~40℃; relative humidity: 30%~90%
Dimension Custom made
Weight Custom madeIntroduction Introduction Introduction
